A garage can trap a surprising amount of heat. Sunlight warms the roof and garage door, concrete stores heat, and a recently parked vehicle adds even more warmth. Opening the door may release some hot air, but it rarely creates steady airflow across the entire space.

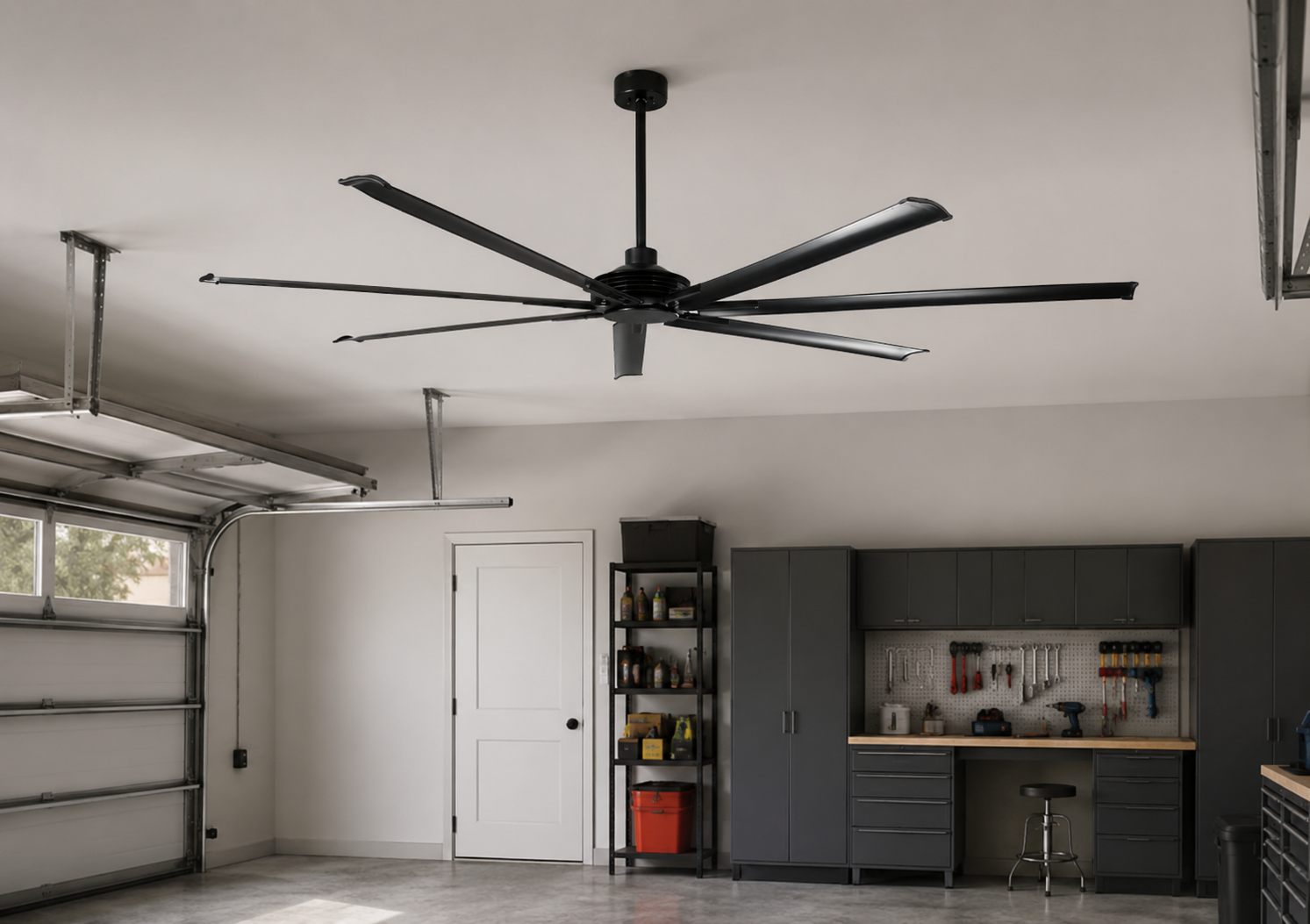

An extra large ceiling fan can make the garage more comfortable by moving air over vehicles, workbenches, exercise equipment, and occupied areas. However, choosing the right fan requires more than buying the largest model that will fit.
For most large residential garages and workshops, the main choices are 84 inch, 100 inch, and 120 inch ceiling fans. Each size serves a different type of space. The right option depends on the garage dimensions, ceiling height, airflow rating, door clearance, and room layout.
Looking for the right ceiling fan?
Compare ceiling fan sizes, styles, finishes, and features to find a comfortable fit for your room and daily use.
Why Fan Diameter Matters in a Garage
Fan diameter is the distance from one blade tip to the opposite blade tip. A wider blade sweep can move air across a larger area, but diameter alone does not determine performance.
An 84 inch fan has a 7 foot blade span. A 100 inch fan has a span of slightly more than 8 feet. A 120 inch fan creates a full 10 foot blade sweep. As the diameter increases, the fan needs more open ceiling space and greater clearance from walls, lights, storage racks, and garage door equipment.
Larger blades can create a broad column of air at a relatively low rotational speed. This is often useful in a garage because the goal is usually wide, steady air movement rather than a narrow, high-speed breeze.
However, two fans with the same diameter can have very different airflow. Blade shape, pitch, motor torque, speed, mounting height, and surrounding obstacles all affect the final result.
Quick Comparison: 84 vs 100 vs 120 Inch Fans
The following table provides a practical starting point. These are planning guidelines, not guaranteed coverage limits.
| Fan size | Best suited for | Main advantage | Main concern |
|---|---|---|---|
| 84 inch | Standard two-car garages and compact workshops | Large coverage without requiring extreme clearance | May leave weak airflow in long or divided garages |
| 100 inch | Wide two-car garages, three-car garages, and large work areas | Strong balance between coverage and manageable size | Needs careful clearance around door tracks and storage |
| 120 inch | Large open garages, commercial workshops, and high-ceiling spaces | Broad airflow from one central fan | Requires a 10 foot clear blade sweep and strong structural support |
XXXLFAN groups 84 inch, 100 inch, and 120 inch models as large ceiling fan options for garages, workshops, and other open areas that need more circulation than a standard residential fan can provide.
When an 84 Inch Garage Fan Makes Sense
An 84 inch ceiling fan is often the most practical oversized option for a standard residential garage. It is substantially wider than a typical indoor fan, but it can still fit in many two-car garages without occupying most of the ceiling.
This size works best when the garage is close to square, the center ceiling area is open, and the fan can be positioned away from the garage door opener. It may also work well above a dedicated workshop area at the rear of the garage.
An 84 inch fan is worth considering when:
- The garage has one open work zone.
- A 100 or 120 inch blade sweep would approach the door tracks.
- You want oversized airflow without turning the fan into the dominant ceiling feature.
The main limitation is coverage. An 84 inch model may perform well in the center but may not provide the same airflow near both ends of a long garage. In that case, two smaller fans or one 100 inch fan may create a more even result.
Why a 100 Inch Fan Is the Middle Ground
A 100 inch ceiling fan sits between large residential models and the widest 120 inch commercial-style fans. For many large garages, it offers the most useful balance of blade span, airflow potential, and physical fit.
This size is especially suitable for wide two-car garages, three-car garages, home gyms, and combined parking and workshop spaces. The larger sweep can reach more of the room without requiring the full 10 foot clearance of a 120 inch fan.
A 100 inch fan may be the better choice when:
- An 84 inch fan would leave noticeable dead zones.
- The garage has enough open ceiling width for an 8 foot blade sweep.
- One central fan is preferred over two separate fixtures.
Before ordering, mark the proposed fan center on the ceiling. Measure 50 inches in every direction, then add the clearance required by the manufacturer. This simple check helps identify conflicts with lights, cabinets, tracks, and ceiling storage.
Some 100 inch XXXLFAN models are listed with airflow ratings above 9,000 CFM, while other 84 and 100 inch product families reach up to 11,500 CFM depending on the model and size selected. This shows why diameter should be compared with the actual published airflow rather than used as the only buying measure.
When a 120 Inch Ceiling Fan Is Appropriate
A 120 inch ceiling fan has a 10 foot blade diameter. It is designed for a large, open garage where a smaller fan would not provide enough reach.
This size can work well in a spacious three-car garage, professional workshop, vehicle service area, large home gym, or detached garage with a high ceiling. It may also reduce the need for several smaller fans when the room has an open, unobstructed layout.
A 120 inch fan is most appropriate when:
- The garage is wide and largely free of ceiling obstacles.
- The mounting point has strong structural support.
- The fan can clear open garage doors, tracks, lights, and storage systems.
Do not choose a 120 inch model simply because the garage feels hot. The fan must physically fit. From its center, the blade tips extend 5 feet in every direction. Additional operating clearance is still required.
A long, narrow, or divided garage may not benefit from one 120 inch fan. The airflow can be blocked by beams, tall shelving, partitions, or storage platforms. Two 84 inch fans may provide better coverage in those conditions.
Use Airflow, Not Size Alone
CFM means cubic feet per minute. It describes how much air a fan moves under a defined test condition.
When comparing 84, 100, and 120 inch fans, look at the published CFM rating at the same time as the blade diameter. A wider fan does not automatically move more air if it has a weaker motor, inefficient blades, or a limited speed range.
Airflow efficiency may be expressed as CFM per watt. This compares airflow with electrical input. A higher figure means the fan moves more air for each watt consumed, although actual garage comfort still depends on placement and room shape.
Also compare the available speed settings. Maximum airflow is useful during hot weather, but a lower speed may be more comfortable for routine work. A six-speed fan provides more control than a basic model with only a few settings.
Match Airflow to How the Garage Is Used
A parking garage and a working garage do not have the same airflow needs.
A garage used mainly for parking may only need gentle air circulation to reduce stagnant conditions. A home gym, woodworking area, repair shop, or hobby space benefits from more noticeable airflow at body level.
An 84 inch fan may be enough when people work in one central zone. A 100 inch fan can provide wider coverage across multiple vehicle bays. A 120 inch fan is more suitable when people move throughout a large open workspace.
Remember that a ceiling fan circulates indoor air. It does not replace exhaust ventilation and cannot make vehicle exhaust, chemical vapors, or combustion fumes safe.
Check Garage Door Clearance Before Buying
Garage door equipment is often the biggest obstacle to an extra large fan.
The open door panels, horizontal tracks, opener rail, motor, lights, and support brackets may occupy much of the ceiling. Measure the garage with the door fully open, not only when it is closed.
The fan must remain clear of every moving part. Blade flex and normal fan movement should also be considered. A blade tip should not pass extremely close to a track simply because the two objects do not touch while stationary.
Depending on the garage layout, the fan may need to be placed behind the open door, between two door systems, or above the rear workshop zone.
For garages with two separate doors, a 100 inch or 120 inch fan may fit between the track systems. In other garages, two 84 inch fans placed farther back may be safer.
Ceiling Height and Downrod Length
An oversized fan needs space above the blades to draw in air and enough clearance below for safe operation.
Low ceilings can limit the use of 100 and 120 inch models. Even when the blade sweep fits horizontally, the complete installed height may conflict with vehicles, lifts, cabinets, or people.
Measure the full distance from the ceiling to the lowest point of the fan. Include the canopy, downrod, motor housing, blades, and light kit.
A taller garage may require a longer downrod to bring the fan below beams or upper pockets of trapped air. However, the fan should not hang so low that it enters the vehicle or work zone.
Always use a downrod and mounting system approved for the selected fan. Do not combine unrelated parts to achieve a custom height.
One Large Fan or Two 84 Inch Fans
One 100 or 120 inch fan often works well in a square, open garage. It provides one central airflow pattern and requires only one mounting and electrical location.
Two 84 inch fans may be better in a long garage or a space divided into parking and workshop zones. They can also be positioned around a garage door opener or structural beam.
Compare the complete system rather than only the blade spans. Two fans may provide more balanced coverage, but they also require two electrical connections, two mounting points, and more maintenance.
The best layout is the one that directs air toward occupied areas without placing blades near obstacles.
Structural Support Is Essential
An extra large ceiling fan cannot be supported by drywall or by an ordinary light fixture box.
The fan must connect to a fan-rated mounting system and suitable structural support. Large blades and motors create continuous weight, torque, and vibration while operating.
A 120 inch model requires particular attention because of its wide blade sweep and commercial-scale airflow. If the garage has exposed trusses, concrete, steel framing, or an unusual ceiling, the mounting method should be reviewed by a qualified installer.
Do not modify the supplied bracket, downrod, blades, or safety hardware.
Large Garage Fans From XXXLFAN
AEROFLOW Nova 84 and 100 Inch Large Ceiling Fan
The AEROFLOW Nova is available in both 84 inch and 100 inch sizes. The product family is listed with airflow of up to 11,500 CFM, depending on the selected configuration, and uses a DC motor with six-speed remote control, reversible operation, and aluminum blades.
The 84 inch option is a practical fit for many standard garages and focused workshop zones. The 100 inch version provides wider coverage for larger two-car or three-car garages. Choosing between them should be based on the available blade clearance and the width of the occupied area, not simply on which model has the larger span.
AEROFLOW Elite 120 Inch Ceiling Fan
The AEROFLOW Elite has a 120 inch blade span and is listed with airflow of up to 36,000 CFM. It uses an 80 watt DC motor and is designed for garages, workshops, gyms, warehouses, and other large open spaces.
This model is better suited to a large garage with an open ceiling and enough room for its 10 foot blade sweep. Before installation, the mounting point, downrod length, structural support, and garage door clearance should all be confirmed. In a narrow or heavily divided garage, multiple smaller fans may still provide more even airflow.
Final Size Recommendation
Choose an 84 inch fan for a standard two-car garage, a focused workshop, or a ceiling with limited open space.
Move up to a 100 inch fan when the garage is wider, the occupied area extends across several bays, or an 84 inch fan would leave weak airflow near the edges.
Select a 120 inch fan for a large open garage or workshop with adequate ceiling height, strong structural support, and a completely clear 10 foot blade path.
The best garage fan is not always the largest one. It is the model that fits safely, delivers verified airflow, and places moving air where people actually work.
