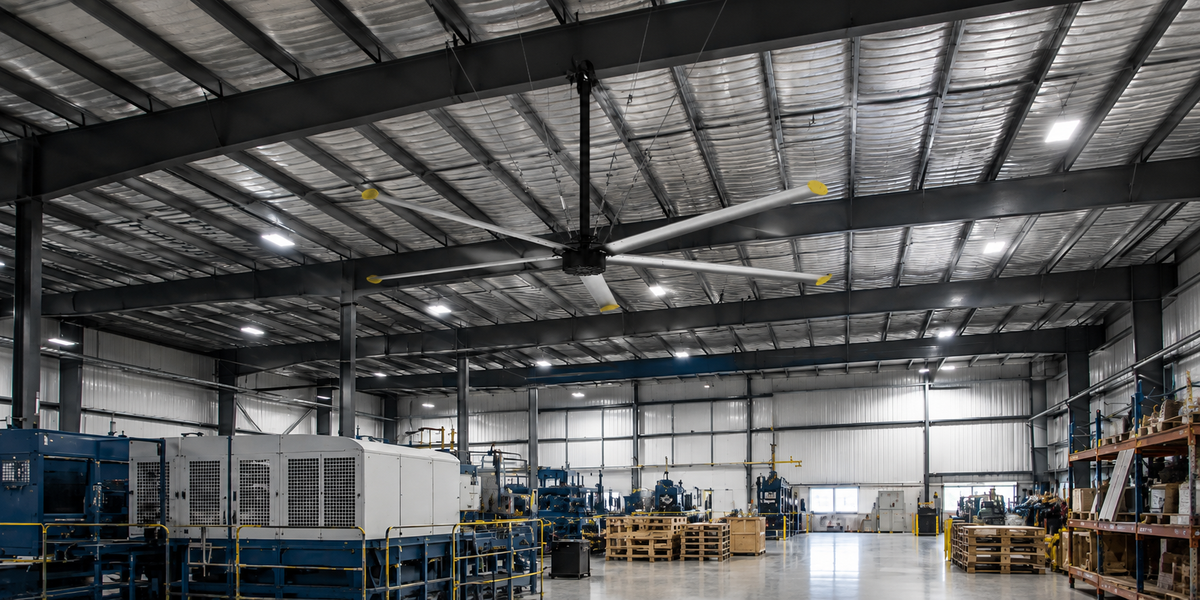

HVLS fans are designed for large commercial and industrial spaces, but floor area is only part of the sizing process. Ceiling height also determines which fan diameter can be installed safely and how effectively the fan can move air through the occupied area.
There is no single minimum ceiling height for every HVLS fan. In many installations, the blade plane should remain at least 10 feet above the finished floor. Larger industrial fans usually need considerably more vertical space.
Looking for the right ceiling fan?
Compare ceiling fan sizes, styles, finishes, and features to find a comfortable fit for your room and daily use.
What Is the Minimum Ceiling Height for an HVLS Fan?
For planning purposes, a 10-foot blade-to-floor clearance is a common starting point for large industrial ceiling fans. This does not mean that a building with a 10-foot ceiling can support an HVLS fan. The motor, mounting hardware, downrod, and required space above the blades must also fit within the available height.
Smaller large-format fans may work in commercial spaces with ceilings around 12 to 20 feet, depending on their design and mounting system. Larger HVLS fans with diameters of 16, 20, or more than 20 feet are generally better suited to taller warehouses, factories, gyms, distribution centers, and similar open buildings.
The final mounting height should always follow the specific fan installation instructions and local requirements.
Why Blade Height Matters More Than Ceiling Height
A building may have a 20-foot ceiling, but that does not mean the fan blades will operate 20 feet above the floor.
The mounting structure and downrod lower the fan from the ceiling. If a fan drops 4 feet from a 20-foot structural mounting point, its blades may operate around 16 feet above the floor.
That operating height is the number that matters most.
It affects safety, airflow distribution, clearance from equipment, and the amount of open space available underneath the fan.
For tall buildings, the opposite problem can occur. Installing an HVLS fan directly under a 40-foot roof may position it farther from workers than necessary. An approved longer downrod can sometimes bring the fan closer to the occupied zone.
HVLS Fan Ceiling Height Guide
The following ranges are useful for early planning. They are not universal installation requirements.
| Ceiling Height | General Fan Planning |
|---|---|
| Under 10 ft | Usually unsuitable for traditional industrial HVLS fans |
| 10 to 14 ft | Smaller commercial large-diameter fans may be possible |
| 14 to 20 ft | More options for commercial and smaller HVLS fans |
| 20 to 30 ft | Common range for many warehouse and industrial HVLS installations |
| 30 to 40 ft | Suitable for larger HVLS fans with proper mounting height |
| Above 40 ft | Often requires careful downrod and airflow planning |
Fan diameter should increase only when the building provides enough vertical and horizontal clearance.
How Fan Diameter Affects Required Height
A 10-foot commercial fan and a 23-foot industrial HVLS fan have very different space requirements.
Larger blades require more room around walls, roof structures, lights, ducts, racks, sprinkler equipment, and other fans. They also need enough vertical distance to create the intended downward airflow pattern.
Consider two 20,000-square-foot warehouses.
One has a 16-foot ceiling. The other has a 30-foot ceiling.
Although their floor areas are identical, the second building can usually accommodate a much larger fan. The lower warehouse may perform better with smaller fans distributed across different zones.
This is why HVLS fans should never be selected by square footage alone.
How Much Clearance Does an HVLS Fan Need Above the Blades?
An HVLS fan needs open space above the blade plane because air is drawn toward the fan before being pushed downward.
Mounting a large fan too close to a solid ceiling or roof deck can restrict this incoming air.
The required upper clearance depends on the fan design and diameter. Some industrial installation guidance relates upper clearance to a percentage of fan diameter, which means a 20-foot fan generally requires more open space than a 10-foot fan.
Always check the manufacturer's installation manual rather than assuming that a short distance between the blades and ceiling is acceptable.
Can You Install an HVLS Fan on a 12-Foot Ceiling?
A traditional 20-foot or larger industrial HVLS fan would usually be inappropriate for a 12-foot ceiling.
A smaller 10-foot commercial fan may be possible if the complete installation can maintain the required blade-to-floor clearance.
Low ceilings make downrod length especially important. Even a difference of several inches can affect whether the blade plane remains high enough.
This is why the final blade position should be calculated before purchasing the fan.
What About 20 to 30-Foot Ceilings?
This range works well for many industrial HVLS applications.
Warehouses, manufacturing plants, gyms, agricultural buildings, and distribution centers often provide enough vertical space to keep a large fan safely above workers and equipment while still placing it close enough to the occupied zone.
A building with a 24-foot ceiling, for example, might support a 10, 13, or 16-foot fan depending on rack height, mounting structure, sprinklers, and other obstructions.
A taller ceiling does not automatically mean that the largest available fan is the best choice. Fan diameter should still match the usable open area.
Can an HVLS Fan Be Mounted Too High?
Yes.
An HVLS fan installed very close to the roof of a 40 or 50-foot building may still move a large amount of air, but airflow felt at floor level can differ from a fan mounted closer to the occupied area.
For very tall warehouses, an approved downrod can position the fan lower.
The goal is not simply to place the fan as high as possible. The goal is to create useful airflow where employees, customers, equipment, or animals actually occupy the space.
Watch for Racks, Lights, Doors, and Equipment
Clear ceiling height can be misleading.
A warehouse listed as having a 25-foot ceiling may contain storage racks reaching 20 feet high. HVAC ducts, lights, heaters, cable trays, roof bracing, cranes, and overhead doors can reduce the usable installation area even further.
Large rotating blades need a clear operating envelope.
Before choosing a fan, measure the actual distance from the proposed mounting point to nearby structures instead of relying only on the building's listed ceiling height.
Sprinkler Clearance Is Important
HVLS fans installed in sprinkler-protected buildings require additional planning.
The fan cannot interfere with sprinkler performance. Depending on the applicable fire protection requirements, fan location, blade size, vertical separation, and automatic shutdown controls may all need to be considered.
A commonly referenced requirement for qualifying large HVLS fan installations is at least 3 feet of vertical clearance between the fan and sprinkler deflectors.
Because fire codes and adopted standards can vary by location and building type, sprinkler coordination should be reviewed before installation.
The Mounting Structure Must Support the Fan
Enough ceiling height does not automatically mean the building is ready for an HVLS fan.
Large ceiling fans must attach to suitable structural components such as steel beams, tubes, channels, or other approved supports.
The structure needs to handle both the fan weight and the forces produced during operation.
A good airflow location may therefore need to change if there is no suitable structural mounting point above it.
For larger commercial and industrial projects, structural conditions should be evaluated before the final fan position is selected.
XXXLFAN AEROFLOW Elite 120 Inch Ceiling Fan
The XXXLFAN AEROFLOW Elite has a 120-inch, or 10-foot, blade span and is designed for large commercial spaces such as workshops, gyms, warehouses, factories, restaurants, and other open areas. It is rated for airflow up to 36,000 CFM and uses an 80-watt DC motor with six speeds, reversible operation, timer settings, and memory functions.
Its smaller diameter makes it a practical option for buildings that do not have the vertical space required by very large industrial HVLS fans. The installation instructions call for at least 10 feet between the floor and blade tips and at least 30 inches between the blade tips and nearby walls or upright structures. Final suitability still depends on the selected downrod and actual ceiling conditions.
XXXLFAN TITAN PRO Industrial HVLS Fan
The XXXLFAN TITAN PRO is designed for much larger industrial environments and is available in 10, 13, 16, 20, and 23-foot diameters. It uses a permanent magnet synchronous motor system and supports mounting arrangements for common industrial structures including I-beams, square tubes, round tubes, C-channels, and concrete beams.
Because the diameter range is much wider, ceiling height becomes especially important when selecting a TITAN PRO size. A 10-foot model and a 23-foot model should not be treated as if they need the same amount of space. Larger versions are better suited to tall, open warehouses, factories, hangars, agricultural buildings, and distribution facilities where adequate clearance can be maintained above, below, and around the blades.
One Large HVLS Fan or Several Smaller Fans?
A tall, open warehouse may benefit from one or several large HVLS fans because the air can spread across a wide area without major obstructions.
Lower buildings with walls, tall racks, equipment, or separate work zones may perform better with multiple smaller fans.
The largest fan is not automatically the most effective option. Air needs a clear path through the building.
Ceiling height, fan diameter, room shape, and obstruction layout should all be considered together.
What Should You Measure Before Buying an HVLS Fan?
Start by measuring from the finished floor to the actual structural mounting point.
Then identify nearby sprinkler heads, beams, lights, ducts, racks, cranes, heaters, doors, and other equipment.
Finally, calculate the expected blade height after the mounting hardware and downrod are installed.
These measurements provide a much better basis for fan selection than ceiling height alone.
Final Thoughts
There is no universal minimum ceiling height for every HVLS fan. A 10-foot blade-to-floor clearance is a useful starting point, but larger fans also need sufficient space above and around the blades.
For lower commercial ceilings, a smaller large-diameter fan may be more practical. For tall warehouses and factories, larger HVLS fans can provide broad airflow when mounted at the correct height.
Choose the fan based on the building's actual usable space, not ceiling height or square footage alone.
