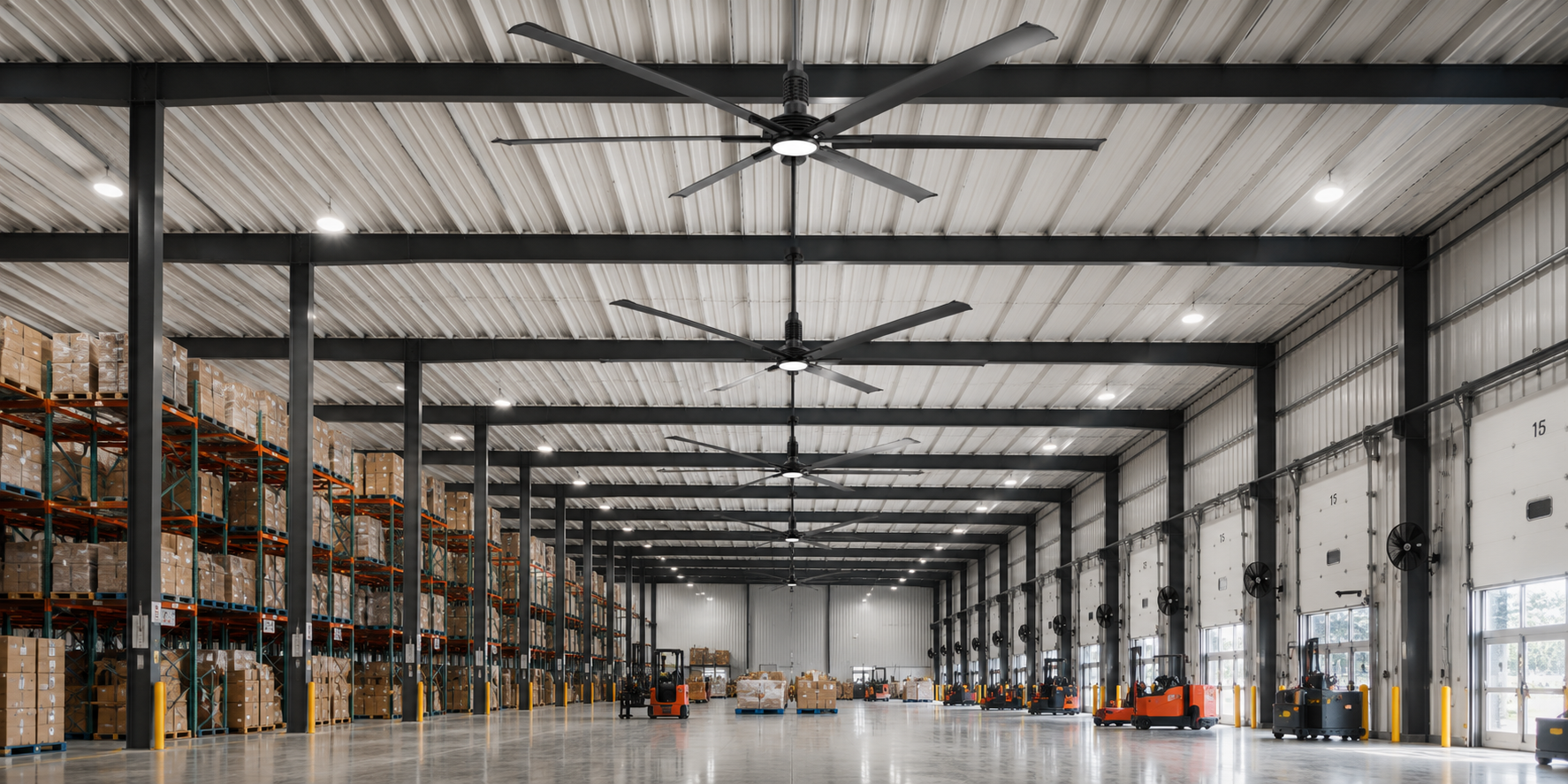

A warehouse can become hot, stuffy, and uncomfortable when air does not move evenly. Warm air often collects near the roof, while storage racks, machinery, dock doors, and walls create areas with poor circulation.
An HVLS fan can improve airflow across a large space, but only when the fan is correctly sized and installed. Choosing the right model involves more than checking fan diameter. Ceiling height, rack layout, occupied work zones, mounting structure, sprinkler placement, and seasonal use all affect the final decision.
This guide explains how to choose the right HVLS fan for your warehouse, compare important specifications, and avoid common purchasing mistakes.
Looking for the right ceiling fan?
Compare ceiling fan sizes, styles, finishes, and features to find a comfortable fit for your room and daily use.
Define the Main Goal
Start by deciding what the fan needs to do.
Some warehouses need better comfort around packing tables and production stations. Others need to reduce stagnant air, improve circulation around equipment, or move warm air down from the ceiling during winter.
An HVLS fan does not cool the air like an air conditioner. It moves air across the skin, which can help workers feel more comfortable. During extreme heat, fans may need to be combined with ventilation, cooling equipment, hydration, and rest periods.
The main goal should usually be one of the following:
- Improve worker comfort
- Reduce hot and stagnant areas
- Mix warm and cool air more evenly
Once the goal is clear, it becomes easier to choose the right fan size and placement.
Measure the Usable Area
Do not select a fan based only on total building square footage.
A warehouse may include offices, storage rooms, mechanical spaces, and enclosed areas that do not need direct airflow. Measure the open floor area and divide it into practical zones.
| Warehouse area | Main airflow need | Best approach |
|---|---|---|
| Open storage floor | Broad circulation | Large diameter HVLS fan |
| Packing area | Worker comfort | Airflow at working height |
| Loading dock | Flexible circulation | Variable speed control |
| Production zone | Heat movement | Stronger targeted airflow |
| Rack aisles | Airflow around obstacles | Multiple fans or careful placement |
| Small workshop | Local comfort | Oversized commercial fan |
This prevents a common mistake: assuming one large fan will move air evenly through every part of the building.
Check the Ceiling Height
Ceiling height affects fan size, downrod length, and blade clearance.
Measure from the floor to the lowest obstruction, not just to the highest point of the roof. Beams, lights, sprinklers, heaters, and ducts may reduce the usable height.
| Clear ceiling height | Fan type to consider | Common application |
|---|---|---|
| 9 to 12 feet | Large commercial fan | Small warehouse room |
| 12 to 18 feet | Oversized fan or compact HVLS fan | Workshop or small warehouse |
| 18 to 30 feet | Industrial HVLS fan | Warehouse or factory |
| More than 30 feet | Large industrial HVLS system | High bay facility |
These ranges are only a starting point. Final placement must follow the fan instructions and local building requirements.
The fan also needs enough space above the blades to pull in air. If it is mounted too close to the ceiling, airflow may be reduced. If it hangs too low, it may interfere with racks, vehicles, cranes, or equipment.
Choose the Right Diameter
A larger fan usually creates a wider airflow pattern, but the largest model is not always the best choice.
A large industrial HVLS fan works well in an open warehouse with a high ceiling and few obstructions. It can cover a broad floor area with fewer motors and electrical connections.
Several smaller fans may work better in warehouses with tall racks, narrow aisles, mezzanines, or divided work zones. Smaller fans can be placed over separate areas where workers need airflow.
The drawback is that multiple fans require more mounts, wiring, controllers, and maintenance points.
The best choice depends on the shape and layout of the warehouse, not only the total floor area.
Compare More Than Fan Size
Fan diameter is important, but it does not fully explain performance.
Two fans with the same diameter may perform differently because of blade shape, blade pitch, motor design, operating speed, and mounting height.
Important specifications include:
| Specification | What it shows | Why it matters |
|---|---|---|
| Fan diameter | Overall blade span | Helps estimate coverage |
| Airflow | Volume of air moved | Supports basic comparison |
| Input power | Electrical demand | Helps estimate energy cost |
| Speed control | Available operating levels | Allows flexible use |
| Sound rating | Operating noise | Matters near workstations |
| Environment rating | Suitable exposure conditions | Important for damp or outdoor areas |
| Warranty | Product protection | Reduces ownership risk |
Do not compare airflow numbers without checking the fan size and test conditions. Maximum airflow does not always show how much air reaches workers at floor level.
Focus on Working Height
Employees feel air speed, not total airflow volume.
A fan may move a large amount of air near the ceiling but still provide weak movement at the floor. This can happen when the fan is mounted too high, blocked by racks, or positioned away from occupied areas.
Mark the places where employees spend the most time, such as packing tables, assembly lines, loading positions, and inspection stations.
The fan layout should send useful airflow to these areas instead of only moving air through empty space.
Comfort also depends on temperature, humidity, clothing, and physical activity. A worker moving boxes may need stronger airflow than someone working at a desk.
Account for Storage Racks
Tall pallet racks can block air movement.
Air from an HVLS fan normally moves downward and then spreads across the floor. High racks may prevent that airflow from reaching nearby aisles.
Consider rack height, aisle width, pallet density, and product type before selecting a fan.
A warehouse with tall racks may need several fans placed over cross aisles or work zones. In some cases, ceiling fans can be combined with wall fans to improve circulation in blocked areas.
The airflow should not be strong enough to disturb lightweight packaging, labels, dust, or loose materials.
Plan Around Dock Doors
Loading docks create changing indoor conditions.
When doors are open, outdoor heat, cold air, and wind can affect the fan pattern. An HVLS fan can improve circulation, but it should not replace dock seals, insulated doors, air curtains, or mechanical ventilation.
Fan placement should also avoid pushing vehicle exhaust, dust, or outdoor contaminants deeper into the warehouse.
Air circulation is not the same as ventilation. A ceiling fan moves indoor air, but it does not remove pollutants or bring in fresh air.
Inspect the Mounting Structure
Industrial HVLS fans place weight and operating forces on the building structure.
The fan may need to connect to an I beam, concrete beam, square tube, round tube, or another approved structural member. Different structures require different mounting hardware.
The installer should confirm the condition and capacity of the support point. Safety cables, stabilizing cables, or additional reinforcement may also be needed.
A roof deck alone may not be strong enough. This is especially important in older warehouses and pre engineered metal buildings.
Coordinate With Sprinklers
HVLS fans must be planned around the fire sprinkler system.
The blades should not block sprinkler discharge or reduce required coverage. The fan may also need to shut down automatically when the sprinkler system activates.
Clearance requirements depend on local codes, the building design, and the sprinkler layout.
The fan location should be reviewed before mounting and electrical work begin. Moving the fan later can increase project cost.
Check Lights and HVAC Equipment
Lights, heaters, ducts, and air diffusers may interfere with the fan.
Lights can create flicker when blades pass below them. Ducts and heaters may also change airflow or limit blade clearance.
The fan should have enough open space above and below the blades.
If the warehouse uses heating or air conditioning, the fan should support the system instead of working against it. Poor placement may change supply air patterns or reduce return airflow.
Complex facilities may need an HVAC review before the final fan location is approved.
Plan for Summer and Winter
During summer, the fan should create comfortable airflow in occupied areas.
Maximum speed is not always necessary. Too much airflow can move papers, disturb packaging, spread dust, or make workers uncomfortable.
Variable speed control allows the fan to match changing conditions during the day.
During winter, an HVLS fan can operate at a lower speed to reduce temperature stratification. Warm air rises and collects near the ceiling, especially in tall buildings. Gentle mixing can help move some of that heat back toward floor level.
The goal in winter is slow circulation, not a strong draft.
Compare Motors and Controls
The motor and controller affect efficiency, sound, maintenance, and operating flexibility.
Many modern HVLS fans use permanent magnet or brushless motors. These systems can provide smooth speed control and reduce some mechanical maintenance.
However, motor type alone does not determine quality.
Compare the complete fan system, including the blades, controller, mounting hardware, safety features, electrical protection, and warranty.
Useful control options may include variable speed, scheduling, building management connection, and automatic shutdown through the fire system.
Estimate Energy Use
Annual energy use can be estimated with a simple formula.
Annual energy use equals input power in kilowatts multiplied by operating hours per day and operating days per year.
For example, a fan that uses 1.2 kilowatts and runs 10 hours per day for 300 days would use:
1.2 x 10 x 300 = 3,600 kilowatt hours per year.
At an electricity rate of 0.14 dollars per kilowatt hour, the annual cost would be:
3,600 x 0.14 = 504 dollars.
Actual energy use depends on fan speed. A fan running below maximum speed may use much less power.
Use the power data for the expected operating speed, not only the maximum motor rating.
Review the Total Cost
The fan price is only one part of the project.
A complete budget may include equipment, freight, mounting hardware, electrical work, lift rental, structural reinforcement, controls, and fire system integration.
Ask suppliers to separate these costs in the quote.
A low equipment price may not represent the lowest total cost if the fan requires difficult installation or expensive structural changes.
Choose the Right Product Type
TITAN PRO Industrial HVLS Fan
The TITAN PRO Industrial HVLS Fan is designed for large warehouses, factories, distribution centers, agricultural buildings, and other high ceiling industrial spaces. It is available in 10 foot, 13 foot, 16 foot, 20 foot, and 23 foot sizes, allowing buyers to match the fan diameter to the warehouse layout and available mounting space.
The fan uses a permanent magnet motor, variable speed control, aluminum airfoil blades, and several industrial mounting options. It is a practical choice for open warehouse floors that need broad air circulation across a large area. Before ordering, confirm the required fan size, downrod length, voltage, mounting structure, sprinkler clearance, and controller position.
AEROFLOW Lumina LED Ceiling Fan
The AEROFLOW Lumina LED Ceiling Fan is available in 84 inch and 100 inch sizes. It combines a large blade span with six speed control, remote operation, aluminum blades, and an integrated LED light.
This model is better suited to small warehouses, workshops, garages, packing rooms, covered work areas, and individual warehouse zones. It provides more localized airflow than a full industrial HVLS system, making it useful where a large 10 foot to 23 foot fan is unnecessary or cannot fit the available ceiling space.
Avoid Common Mistakes
One common mistake is choosing a fan based only on square footage. Coverage estimates do not fully account for racks, machinery, walls, or mounting height.
Another mistake is comparing only maximum airflow. A high airflow number does not show how evenly air reaches the floor.
The third mistake is ignoring installation costs. Structural work, wiring, fire controls, and lift access can add significant expense.
A site survey should be completed before the final order is placed.
Use a Site Survey
A proper site survey should record:
- Building size and clear ceiling height
- Rack layout, work zones, and structural members
- Sprinklers, lights, heaters, doors, and electrical service
For complicated warehouses, airflow modeling may help compare different fan sizes and locations.
After installation, test the fan at several speeds and check airflow in occupied areas. The best setting may change by season, shift, or workload.
Final Checklist
Before choosing an HVLS fan, confirm the usable floor area, clear ceiling height, rack layout, mounting structure, sprinkler position, power supply, and main airflow goal.
Also confirm the environment rating, controller type, installation costs, and warranty.
The best fan is not always the largest model. It is the fan that fits the building, reaches the occupied area, and operates safely and efficiently.
Conclusion
Choosing the right HVLS fan starts with the warehouse layout.
Measure the usable space, ceiling height, structural supports, racks, work zones, and sprinkler system before comparing products.
A large industrial fan such as the TITAN PRO is designed for broad airflow in high ceiling warehouses and factories. An oversized model such as the AEROFLOW Lumina is more suitable for small warehouses, workshops, garages, and specific work zones.
The final decision should be based on floor level airflow, installation conditions, control needs, total cost, and year round use.
