Cooling a factory floor without central air conditioning is possible, but it requires a planned airflow strategy. Large industrial buildings often collect heat from machinery, motors, lighting, workers, open loading doors, and sun-exposed roofs. High ceilings can also trap warm air above the production floor.
Instead of trying to cool the entire building like an office, many factories focus on three goals: remove concentrated heat, exhaust trapped hot air, and create steady air movement where employees work.
For large open factories, HVLS fans are often one of the most practical parts of this strategy. A properly sized HVLS fan can move a large volume of air across a wide area while operating at a relatively low speed.
Looking for the right ceiling fan?
Compare ceiling fan sizes, styles, finishes, and features to find a comfortable fit for your room and daily use.
Why Factory Floors Become So Hot
Factory heat usually comes from several sources at the same time.
Production equipment, compressors, welding stations, ovens, dryers, and motors release heat during operation. Workers and forklifts also add heat to the occupied area.
The roof may absorb solar heat throughout the day, especially when the building has dark metal roofing or limited insulation. That heat moves downward and raises the indoor temperature.
Warm air also collects near the ceiling. Without enough circulation or exhaust, the upper part of the building becomes a large heat reservoir.
Because of these conditions, adding a few portable fans may provide local relief but will not solve the overall airflow problem.
Start With a Heat and Airflow Review
Before selecting equipment, identify where the heat enters the building and where employees spend the most time.
Measure conditions near production lines, loading areas, storage zones, welding stations, and mezzanines. Conditions can change greatly from one side of the factory to another.
Mark major heat sources, including:
- Ovens, furnaces, compressors, and large motors
- Sun-exposed walls, roofs, windows, and loading doors
- Areas with weak airflow or blocked ventilation
Also inspect ceiling beams, lights, sprinklers, cranes, racks, and ducts. These features may affect where an HVLS fan can be installed and how effectively air can spread across the floor.
Remove Heat Close to the Source
The most efficient heat is the heat that never reaches the general work area.
Local exhaust systems can capture hot air, steam, and process heat near ovens, welding stations, dryers, and other equipment. The exhaust point should be positioned close enough to the source to collect heat before it spreads.
Hot pipes, tanks, ducts, and equipment surfaces should be insulated where practical. Damaged insulation should be repaired because even a small exposed section can release significant radiant heat.
Large heat-producing equipment may also be placed in a separate mechanical area when the building layout allows it.
Source control should normally come before general air circulation. An HVLS fan can distribute air effectively, but it should not be used to spread fumes, steam, or concentrated process heat across the factory.
Exhaust Hot Air Near the Roof
Because hot air rises, high-level exhaust can help release heat trapped near the ceiling.
Roof exhaust fans, powered wall vents, and ridge ventilation can remove hot upper air. However, exhaust equipment needs replacement air. Without enough intake openings, the building may develop negative pressure and the exhaust system may move less air than expected.
A good airflow path brings outdoor air in through controlled lower openings, moves it across the occupied floor, and releases warmer air through higher exhaust points.
Intake and exhaust openings should not be placed too close together. Otherwise, fresh air may leave the building before it reaches workers or equipment.
In climates with cooler evenings, night ventilation may also remove stored heat before the next shift begins.

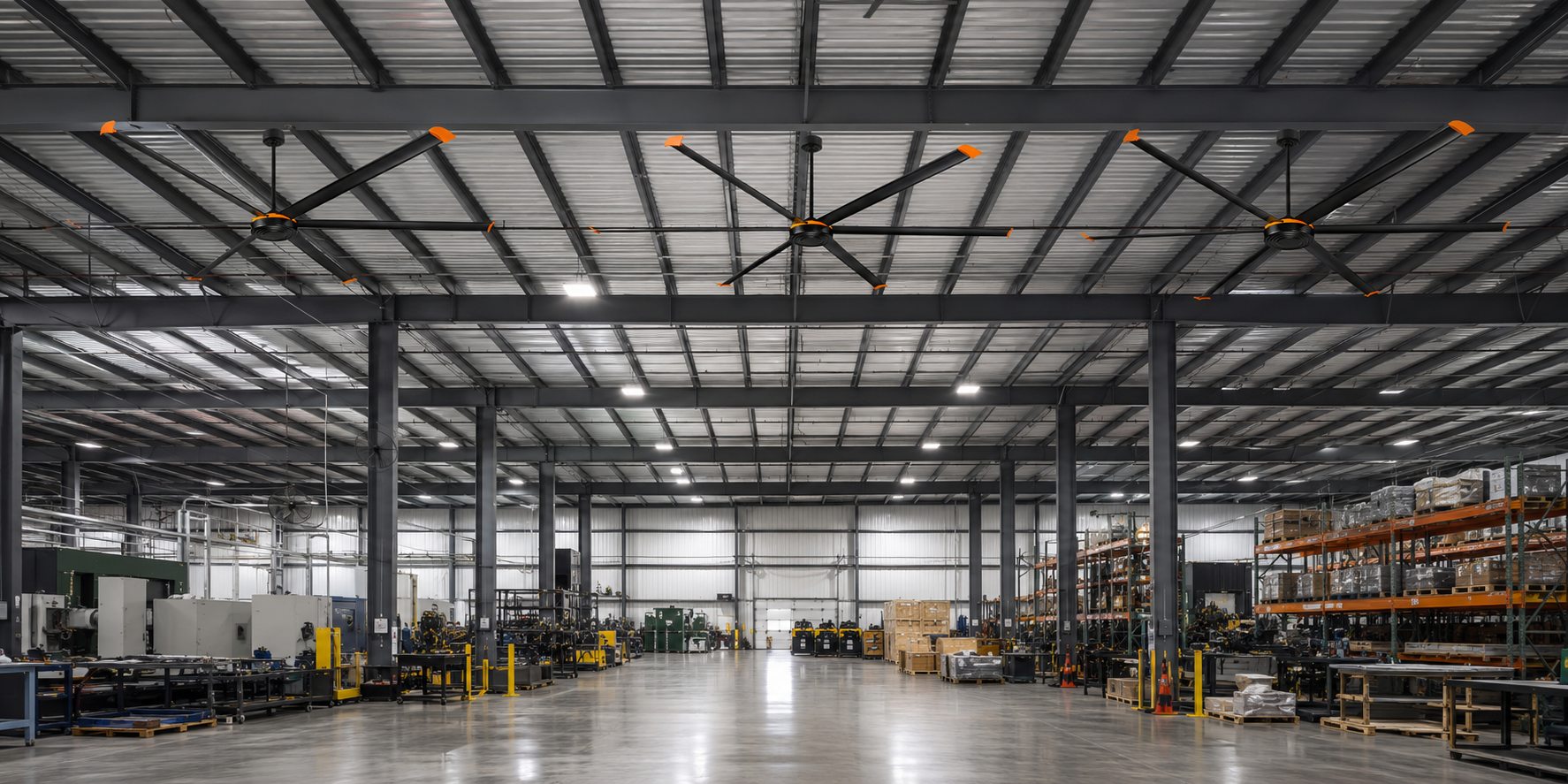

Use HVLS Fans for Broad Factory Airflow
HVLS stands for high volume, low speed. These large-diameter fans move a broad column of air at a slower rotational speed than small industrial fans.
The air moves downward from the fan and spreads outward across the floor. This creates wide, steady circulation throughout an open production area.
An HVLS fan does not refrigerate the air. Instead, it increases air movement around workers and reduces stagnant zones. This can improve comfort because moving air helps sweat evaporate when humidity is not excessive.
HVLS fans are especially useful in factories with:
- Large open floor areas
- High ceilings
- Workers spread across multiple production zones
One properly selected HVLS fan may cover a much wider area than several small pedestal or drum fans. It can also reduce the clutter caused by floor fans, power cords, and temporary equipment.
Why Fan Diameter Matters
A larger fan can move air across a wider area, but diameter is not the only factor.
Ceiling height, installation height, motor performance, blade design, fan speed, and nearby obstructions all influence coverage.
A 20-foot or 23-foot HVLS fan may be suitable for a large open factory bay, while a 10-foot or 13-foot fan may work better in a smaller production zone.
A 120-inch industrial ceiling fan can also be useful in workshops, loading areas, or factory sections that do not need a full-size HVLS system.
The goal is not to select the largest fan available. The goal is to create even air movement without excessive drafts, dead zones, or interference with production.
Plan the HVLS Fan Layout Carefully
HVLS fan placement should be based on the building layout rather than simple square footage.
Tall storage racks, interior walls, mezzanines, large machinery, and crane systems can block horizontal airflow. A long factory may need several fans installed along the production line instead of one fan in the center.
The installation plan should consider:
- Areas where workers need airflow
- Structures that may block or redirect air
- Required clearance from lights, sprinklers, beams, and equipment
Fans should also be spaced so that their airflow patterns support one another. Placing fans too close together may create uneven circulation. Placing them too far apart may leave hot areas between them.
A professional layout is especially important for factories with complex production equipment or very high ceilings.
Combine HVLS Fans With Exhaust Ventilation
HVLS fans and exhaust fans perform different jobs.
An exhaust fan removes hot indoor air from the building. An HVLS fan circulates air through the occupied area.
When used together, the exhaust system can release trapped heat while the HVLS fans prevent warm, stagnant air from remaining over workstations.
This combination is often more effective than using either system alone. The HVLS fans help move air toward the occupied zone, while planned exhaust removes the hottest air from the building.
However, fan direction and exhaust placement must be coordinated. Poorly positioned equipment may cause air to circulate in a loop without leaving the factory.
HVLS Fans Compared With Portable Fans
Portable fans can still be useful, but they provide a different type of airflow.
| Fan Type | Coverage | Best Use |
|---|---|---|
| HVLS fan | Very wide | Large open factory floors |
| Large industrial ceiling fan | Medium to wide | Workshops and production zones |
| Pedestal fan | Small and local | Fixed workstations |
| Drum fan | Directional | Loading docks and temporary tasks |
| Exhaust fan | Building or process area | Removing hot air |
An HVLS fan provides broad, consistent circulation. A pedestal or drum fan creates a narrower and stronger air stream.
Many factories use HVLS fans for general circulation and add smaller fans only at unusually hot workstations.
Portable fans should not blow dust, fumes, sparks, or lightweight materials into occupied or clean production areas.
Reduce Heat Entering Through the Roof
HVLS fans improve airflow, but reducing roof heat gain can make the entire cooling plan more effective.
Inspect roof insulation for wet, compressed, or missing areas. Poor insulation allows solar heat to enter the factory more quickly.
Reflective roofing or compatible roof coatings may reduce the amount of heat absorbed by the building.
Direct sunlight through windows and skylights can also create hot spots. Exterior shades, solar-control materials, or insulated curtains may reduce radiant heat in these areas.
These improvements do not replace ventilation or HVLS fans, but they lower the amount of heat those systems must manage.
Consider Evaporative Cooling in Dry Regions
Evaporative cooling can lower the temperature of incoming air by passing it through wet media.
This method works best in hot, dry climates. It is less effective in humid regions because the outdoor air already contains more moisture.
An evaporative cooler must be paired with an exhaust path. Fresh cooled air enters the building while warmer indoor air leaves through vents, doors, or exhaust fans.
HVLS fans can help distribute evaporatively cooled air across a large factory floor. Without circulation, cooler air may remain concentrated near the supply point.
Before using this method, consider whether added moisture could affect metal parts, packaging, electronics, stored materials, or production quality.
Create Cooler Work and Recovery Areas
It may not be practical to lower the temperature across every part of a large factory.
Spot cooling can be used in control rooms, inspection areas, enclosed work cells, and employee break spaces. These cooler zones give employees a place to recover during hot shifts.
Workers should also have convenient access to drinking water. Heavy tasks may be scheduled during cooler hours when production allows.
New employees and workers returning after time away may need gradual exposure to hot conditions. Airflow equipment should be part of a broader heat safety plan rather than the only control.
Common HVLS Fan Mistakes
The first mistake is selecting a fan based only on floor area. Ceiling height and obstructions are just as important.
The second mistake is mounting the fan too close to beams, lights, racks, or the roof. Limited clearance may reduce airflow and create installation risks.
The third mistake is operating every fan at maximum speed. Excessive airflow can disturb packaging, papers, powders, welding processes, or lightweight products.
HVLS fans are designed to create broad, controlled air movement. A lower speed may provide better coverage and less disruption than continuous maximum operation.
Factory Cooling Options From XXXLFAN
XXXLFAN offers large industrial ceiling fans and HVLS systems for different factory layouts.
TITAN PRO Apex 120 Inch Industrial Ceiling Fan
The TITAN PRO Apex is a 120-inch industrial ceiling fan designed for workshops, production areas, garages, gyms, and moderate-size factory zones.
It has six aluminum blades, a DC motor, multiple speed settings, timer control, memory operation, and reversible airflow.
The product page lists airflow up to 37,000 CFM. Its 10-foot blade span allows it to provide wider circulation than a standard commercial ceiling fan while remaining suitable for areas that may not require a very large HVLS system.
This model may work well over specific production zones, assembly areas, service bays, or loading sections. The final installation position should account for ceiling height, beams, lighting, sprinklers, and equipment clearance.
TITAN PRO Industrial HVLS Fan
The TITAN PRO Industrial HVLS Fan is intended for large factories, warehouses, hangars, barns, and other high-bay industrial buildings.
Available diameters include 10, 13, 16, 20, and 23 feet. This range allows the fan system to be matched to different ceiling heights and floor layouts.
The fan uses a permanent magnet synchronous motor, variable-speed control, and aluminum-magnesium alloy airfoil blades. It is designed to move a high volume of air across a broad floor area at a relatively low operating speed.
The larger 20-foot and 23-foot options may suit wide, open production floors. Smaller sizes may be used where racks, machinery, walls, or separate work zones limit the available installation area.
The correct fan size, mounting method, and downrod length should be selected according to the actual building structure. Installation may involve I-beams, concrete beams, square tubing, metal roofing, or other industrial mounting conditions.
Final Thoughts
Cooling a factory floor without central AC requires a combination of heat control, exhaust ventilation, and air circulation.
Start by removing process heat near its source. Exhaust trapped hot air through high-level vents and provide enough replacement air. Reduce heat entering through the roof and create cooler recovery areas for employees.
For large open factories, HVLS fans can become the main air circulation system. They move a broad volume of air, reduce stagnant zones, and provide wider coverage than small floor fans.
The best results come from selecting the right fan diameter, installation height, speed, and layout. An HVLS fan should not simply move more air. It should create steady airflow across the areas where employees actually work.
