Choosing the right HVLS fan size is not only about square footage. Ceiling height, warehouse racks, equipment, fan mounting height, and the areas where employees work can all affect the final choice.
This guide explains how to select an HVLS fan for warehouses and industrial facilities using practical factors that matter in real installations.
Why HVLS Fan Size Matters
HVLS fans are designed to move a large amount of air at relatively low speed. Their large blade diameter helps distribute air across a much wider area than a typical small ceiling fan.
However, a larger fan is not automatically better. A fan should be selected based on the size and layout of the building, not simply by choosing the largest diameter available.
HVLS fans also do not cool the air in the same way as air conditioning. Instead, increased air movement helps people feel more comfortable by improving heat transfer from the body.
What to Measure Before Choosing an HVLS Fan
Before comparing fan sizes, start with three basic factors.
1. Floor Area
Measure the length and width of the area you want to cover.
For example:
100 ft x 60 ft = 6,000 sq ft
Use the actual area that needs airflow rather than the total building size. Offices, enclosed rooms, storage rooms, and other separated spaces may require different airflow solutions.
2. Ceiling Height
Measure the distance from the floor to the planned fan mounting position.
The roof height alone may not be enough. Beams, lighting, sprinkler pipes, ducts, cranes, and other equipment can affect how low the fan can be installed.
3. Obstructions
Tall pallet racks, machinery, walls, and mezzanines can block or redirect airflow.
An open 10,000 sq ft warehouse may require a very different fan layout from a 10,000 sq ft warehouse filled with high storage racks.
HVLS Fan Size and Coverage
Fan diameter is one of the first specifications buyers usually compare.
A larger diameter can influence a larger air column, but diameter alone does not determine actual performance.
You should also consider airflow, mounting height, motor design, speed control, and the layout of the facility.
A practical reference for XXXLFAN TITAN PRO models is shown below.
| Fan Diameter | Maximum Coverage Reference | Typical Application |
|---|---|---|
| 10 ft | About 2,690 sq ft | Small warehouses and gyms |
| 13 ft | About 5,380 sq ft | Mid size commercial spaces |
| 16 ft | About 7,535 sq ft | Warehouses and production areas |
| 20 ft | About 10,764 sq ft | Large warehouses and factories |
| 23 ft | About 14,531 sq ft | Hangars and very large facilities |
These numbers should be used as a starting reference rather than a guaranteed coverage result.
The actual airflow experienced at floor level depends on ceiling height, fan position, operating speed, racks, walls, machinery, and other conditions.
How Ceiling Height Affects Fan Selection
Ceiling height can change how airflow reaches the occupied area.
In a taller warehouse, air has a greater distance to travel before reaching employees and work areas. This is why mounting height should be considered together with fan diameter and airflow performance.
Do not choose a downrod based only on building height. The final fan position must also provide proper clearance from structural beams, lighting, sprinklers, and other equipment.
The building structure must also be able to safely support the fan and its operating loads.
One Large Fan or Several Smaller Fans

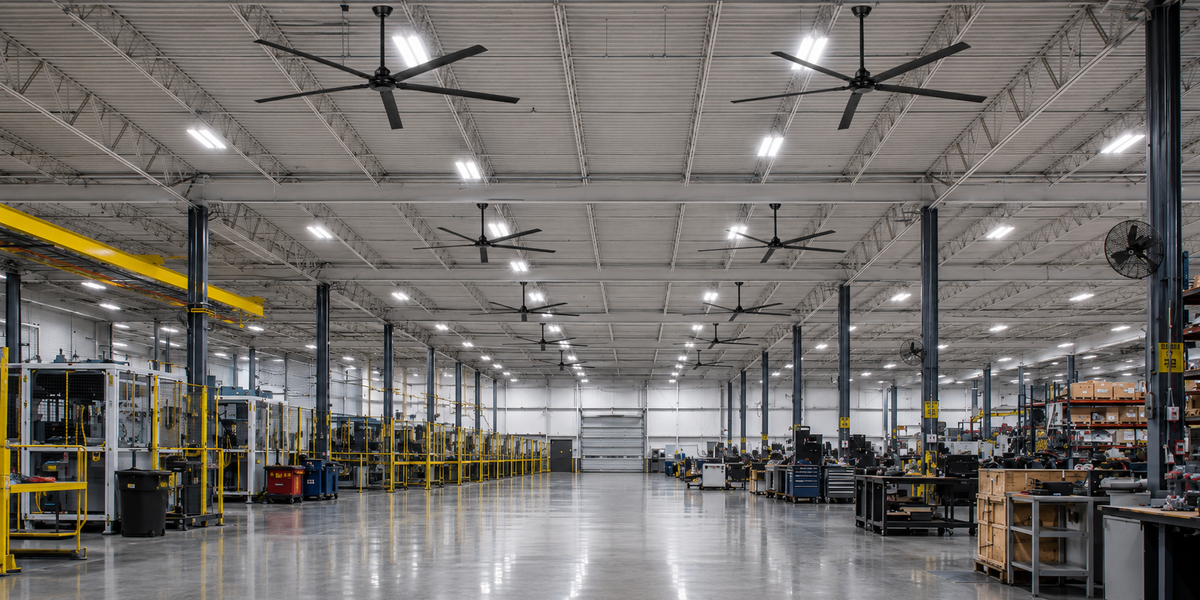

A large HVLS fan can work well in a wide, open warehouse with a clear central mounting area.
In more complex buildings, several smaller fans may provide better airflow distribution.
For example, a long warehouse with several rack aisles may benefit from multiple fan locations instead of one large fan in the center.
The same applies to factories with separate production lines, loading zones, or workstations.
The goal should be useful airflow where people actually work, not simply the largest possible coverage number.
HVLS Fans for Warehouses With High Racks
High storage racks can significantly affect airflow.
In an open building, air from an HVLS fan can move downward and spread outward across the floor. Tall rack rows divide the space into narrower airflow paths.
When planning fans for a high rack warehouse, consider rack height, aisle direction, cross aisles, and the location of work areas.
A fan that looks large enough based on total square footage may still leave some aisles with limited air movement.
For complex facilities, airflow modeling can help evaluate fan placement before installation.
Do Not Ignore Sprinklers and Overhead Equipment
Industrial ceilings often contain more than structural beams.
Sprinklers, HVAC ducts, lighting, electrical conduit, overhead doors, cranes, and cable trays can all affect fan placement.
HVLS fan installation should also be reviewed together with the building's fire protection system.
Do not move sprinklers or choose a fan location based only on a coverage chart. Fire protection requirements and local codes should always be checked before installation.
Why CFM Is Not the Only Number That Matters
CFM measures airflow volume, but it does not tell the complete story.
A high CFM rating does not automatically tell you how much air speed employees will feel at floor level or how evenly the air will move through the warehouse.
When comparing industrial fans, consider:
-
Fan diameter and airflow performance
-
Electrical power and speed control
-
Actual airflow distribution in the building
For large industrial projects, these factors are more useful together than any single specification.
Summer and Winter Operation
During warm weather, HVLS fans increase air movement across people and help improve comfort.
During colder weather, large ceiling fans can also help reduce temperature stratification by mixing warmer air near the ceiling with cooler air closer to the floor.
Variable speed control is useful because the fan can operate at different speeds depending on the season and building conditions.
XXXLFAN AEROFLOW Elite 120“
The XXXLFAN AEROFLOW Elite 120” is a 10 foot large commercial ceiling fan designed for applications that need broad airflow without using a much larger industrial fan. The current model is rated for airflow up to 36,000 CFM and uses a DC motor with six speed control, timer functions, reversible operation, and memory settings. It is suitable for indoor and covered outdoor installations when installed according to the product requirements.
This model can be considered for gyms, workshops, commercial buildings, smaller warehouse zones, and other open spaces where a 10 foot fan fits the layout. Installation conditions still matter. The supporting structure must be suitable for the fan, and proper clearance from the floor, walls, lighting, and other obstacles must be maintained.
XXXLFAN TITAN PRO Industrial HVLS Fan
The XXXLFAN TITAN PRO is designed for larger warehouse and industrial applications. It is available in 10, 13, 16, 20, and 23 foot diameters, allowing the same product platform to serve different facility sizes. The fan uses a PMSM motor system with variable speed control and is designed for indoor, covered outdoor, and outdoor applications according to its installation requirements.
The TITAN PRO is better suited to projects such as distribution centers, factories, aircraft hangars, large gyms, agricultural buildings, and open industrial work areas. Buyers should select the diameter based on floor area, ceiling height, airflow goals, structural support, racks, and overhead equipment rather than diameter alone.
Common HVLS Fan Sizing Mistakes
Many sizing problems come from focusing on only one number.
Choosing by Square Footage Alone
Square footage is useful for narrowing the options, but it does not show ceiling height, racks, machinery, or airflow barriers.
Ignoring the Ceiling Layout
A fan may fit the floor plan but still conflict with beams, sprinklers, lighting, cranes, or ducts.
Assuming Bigger Is Always Better
A very large fan may work well in an open warehouse, while several smaller fans may work better in a divided or heavily racked building.
A Simple HVLS Fan Selection Process
A practical sizing process can be reduced to three steps.
Step 1: Define the Area
Measure the length, width, and actual occupied area that needs airflow.
Step 2: Check the Ceiling
Measure mounting height and identify beams, racks, sprinklers, ducts, lights, and other obstructions.
Step 3: Select the Fan
Compare fan diameter, airflow, coverage, controls, and installation requirements. For large or complicated buildings, consider a detailed airflow layout before ordering.
Final Thoughts
The best HVLS fan size depends on more than warehouse square footage.
A good selection starts with the building layout, ceiling height, work zones, and installation conditions. Once those factors are clear, it becomes much easier to choose the right fan diameter and quantity for the space.
For smaller commercial areas, the AEROFLOW Elite 120“ offers a 10 foot solution. For larger warehouse and industrial projects, the TITAN PRO provides a broader 10 to 23 foot size range.
